PAS68 Shallow Mount Fixed Bollards

These shallow mount technology bollards are designed to combat the problematic fitting of traditional bollards which require deep footings and which can expose a range of services, prohibiting installation.

SKU SP400 Categories ,

Key Features

SP400 – PAS68 Shallow mount fixed bollards mounted on a shallow foundation less than 200mm deep and lock together onsite.

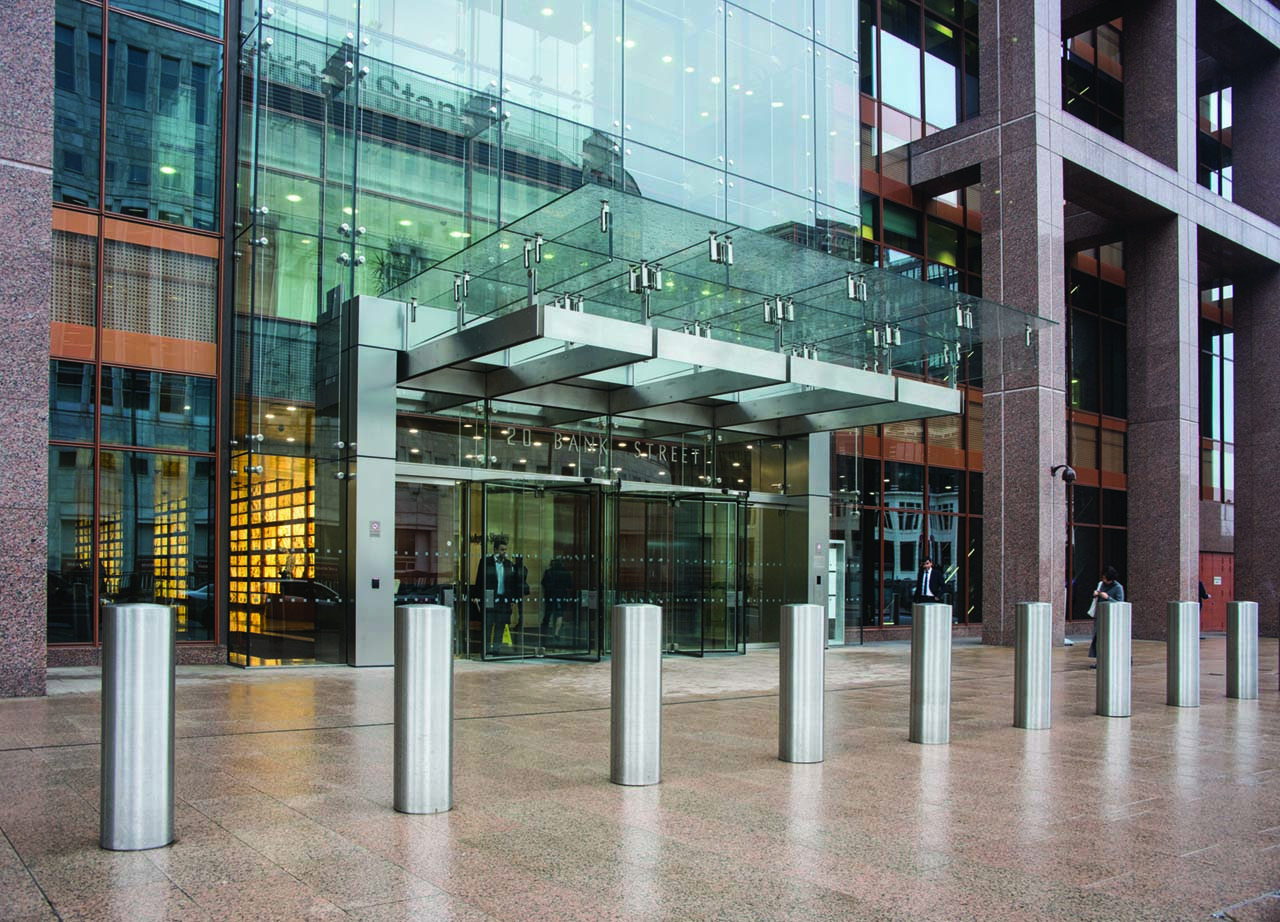

Shallow mount hostile mitigation bollards have been frequently chosen for prestigious projects like banks, airport terminals, railway stations, government buildings, embassies and sports stadiums, which have identified the benefit of selecting this technology. For more information on LEDA projects refer News section of this website.

Sleeves available in stainless or mild steel for aesthetic finish.

Crash Ratings:

  • SP400 Shallow: PAS68: V/7500(N2)48/90:0/0 (1000mm high above ground, 203mm diameter)
  • SP400 Removable: PAS68: V/7500(N2)48/90:0/3.5 (1000mm high above ground, 203mm diameter)
  • SP400 Manual Retractable: PAS68: V/7500(N2)64/90:2.3/2.7 (1000mm high above ground, 203mm diameter)
  • SP400 Auto Retractable: PAS68: V/7500(N2)64/90:2.3/2.7 (1000mm high above ground, 203mm diameter)

Benefits of Shallow Mount:

  • Comparatively low quantities of concrete
  • Installation period substantially lower (between 1-2 hours per bollard)
  • Less on site duration – reduced preliminaries
  • Reduction in time needed for setting out
  • No framework required
  • No need for reinforcing bars in concrete sub-base
  • Reduction in service disruption and ground works

Product Variations – SP400

Specifications

Impact Test Standard

PAS68

Downloads

Data Sheet:HVM - SP400
